AON6506

N-Channel MOSFET

AON6506 General Description



* Latest Trench Power AlphaMOS (αMOS LV) technology

* Very Low RDS(on) at 4.5VGS

* Low Gate Charge

* High Current Capability

* RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 36A < 2.6mΩ < 3.8.

AON6506 Datasheet (313.05 KB)

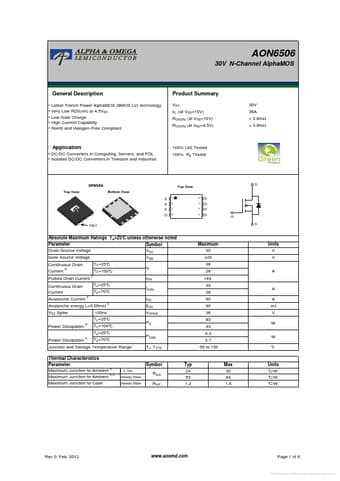

Preview of AON6506 PDF

Datasheet Details

Part number:

AON6506

Manufacturer:

Alpha & Omega Semiconductors

File Size:

313.05 KB

Description:

N-channel mosfet.
