AON6908

30V Dual Asymmetric N-Channel MOSFET

Alpha & Omega Semiconductors

AON6908 Features

* low RDS(ON) to reduce conduction losses as well as an integrated Schottky diode with low QRR and Vf to reduce switching losses. The AON6908 is well suited for use in compact DC/DC converter applications. Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 100% UIS Teste

AON6908 General Description

The AON6908 is designed to provide a high efficiency synchronous buck power stage with optimal layout and board space utilization. It includes two specialized MOSFETs in a dual Power DFN5x6A package. The Q1 "High Side" MOSFET is desgined to minimze switching losses. The Q2 "Low Side" MOSFET is an SR.

AON6908 Datasheet (471.90 KB)

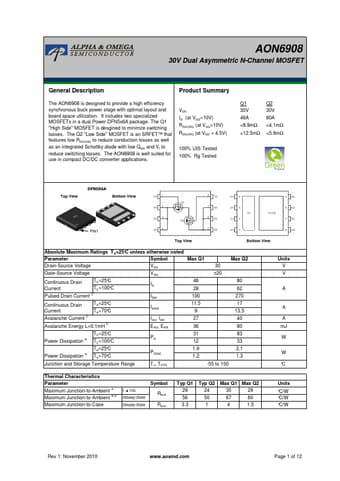

AON6908 Datasheet Preview — Preview of AON6908 PDF

Datasheet Details

Part number:

AON6908

Manufacturer:

Alpha & Omega Semiconductors

File Size:

471.90 KB

Description:

30v dual asymmetric n-channel mosfet.
