AON6908A

N-Channel MOSFET

Alpha & Omega Semiconductors

AON6908A Features

* low RDS(ON) to reduce conduction losses as well as an integrated Schottky diode with low QRR and Vf to reduce switching losses. The AON6908A is well suited for use in compact DC/DC converter applications. Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 100% UIS Test

AON6908A General Description

The AON6908A is designed to provide a high efficiency synchronous buck power stage with optimal layout and board space utilization. It includes two specialized MOSFETs in a dual Power DFN5x6 package. The Q1 "High Side" MOSFET is desgined to minimze switching losses. The Q2 "Low Side" MOSFET is an SR.

AON6908A Datasheet (456.24 KB)

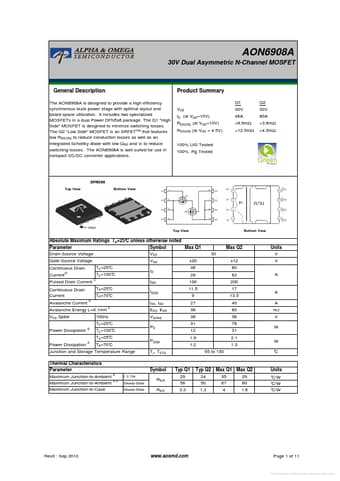

AON6908A Datasheet Preview — Preview of AON6908A PDF

Datasheet Details

Part number:

AON6908A

Manufacturer:

Alpha & Omega Semiconductors

File Size:

456.24 KB

Description:

N-channel mosfet.
