AON7934

30V Dual Asymmetric N-Channel MOSFET

AON7934 General Description



* Latest Trench Power AlphaMOS (αMOS LV) technology

* Very Low RDS(on) at 4.5VGS

* Low Gate Charge

* High Current Capability

* RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) Q1 30V 16A <10.2mΩ.

AON7934 Datasheet (543.20 KB)

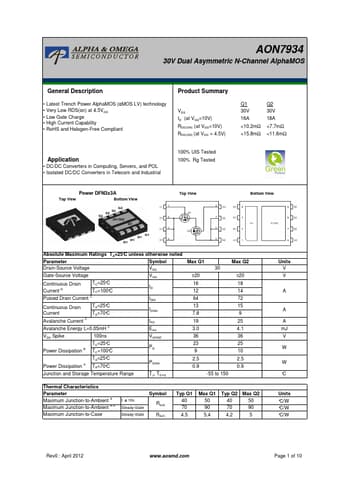

Preview of AON7934 PDF

Datasheet Details

Part number:

AON7934

Manufacturer:

Alpha & Omega Semiconductors

File Size:

543.20 KB

Description:

30v dual asymmetric n-channel mosfet.
