AOT12N65 - 12A N-Channel MOSFET

AOT12N65 Description

AOT12N65/AOTF12N65/AOTF12N65L/AOB12N65L 650V, 12A N-Channel MOSFET General .
Product Summary The AOT12N65 & AOTF12N65 & AOTF12N65L & AOB12N65L have been fabricated using an advanced high voltage MOSFET process that is designe.

AOT12N65 Applications

* By providing low RDS(on), Ciss and Crss along with guaranteed avalanche capability these parts can be adopted quickly into new and existing offline power supply designs. VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) 100% UIS Tested 100% Rg Tested 750V@150℃ 12A < 0.72W TO-220 Top View TO-220F TO-263

📥 Download Datasheet

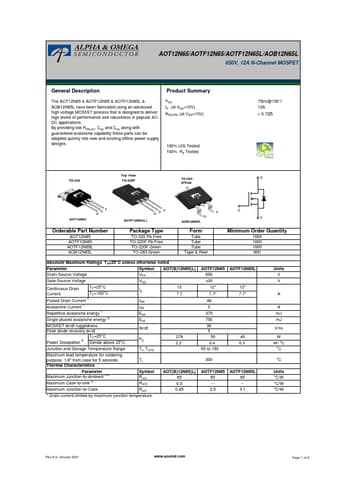

Preview of AOT12N65 PDF
datasheet Preview Page 2 datasheet Preview Page 3
