AOT12N30 Datasheet - INCHANGE

AOT12N30, N-Channel MOSFET

isc N-Channel MOSFET Transistor AOT12N30 .
Designed for use in switch mode power supplies and general purpose applications.

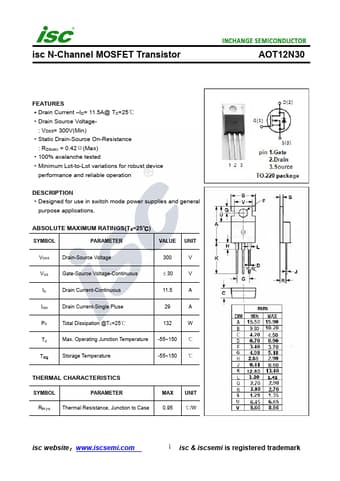

datasheet Preview Page 1 from Datasheet4u.com

AOT12N30-INCHANGE.pdf

AOT12N30 Datasheet Preview — Preview of AOT12N30 PDF

Datasheet Details

Part number:

AOT12N30

Manufacturer:

INCHANGE

File Size:

256.66 KB

Description:

N-Channel MOSFET

Features

* Drain Current
* ID= 11.5A@ TC=25℃
* Drain Source Voltage- : VDSS= 300V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.42Ω(Max)
* 100% avalanche tested

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 300 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 11.5 A IDM Drain Current-Single Pluse 29 A PD Total Dissipation @TC=25℃ 132 W TJ Max. Operating Junction Temper
