AOT10N65 - N-Channel MOSFET

Product Overview

INCHANGE

Datasheet Details

Part number	AOT10N65
Manufacturer	INCHANGE
File Size	256.20 KB
Description	N-Channel MOSFET
Datasheet	AOT10N65 Datasheet

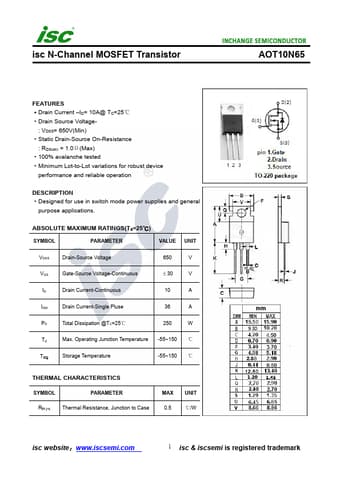

Additional preview pages of the AOT10N65 datasheet.

Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 10 A IDM Drain Current-Single Pluse 36 A PD Total Dissipation @TC=25℃ 250 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Re

Features

Drain Current.
ID= 10A@ TC=25℃.
Drain Source Voltage- : VDSS= 650V(Min).
Static Drain-Source On-Resistance : RDS(on) = 1.0Ω(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
