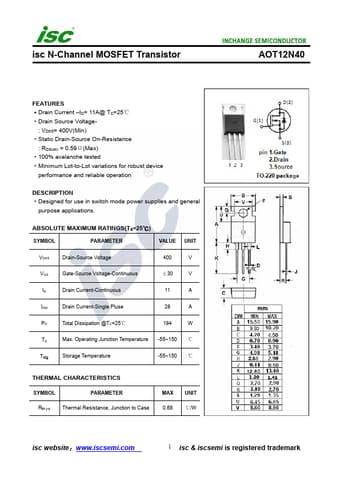

AOT12N40 Datasheet, Mosfet, INCHANGE

AOT12N40 Features

• Mosfet
• Drain Current
    –ID= 11A@ TC=25℃
• Drain Source Voltage- : VDSS= 400V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 0.59Ω(Max)
• 100%

PDF File Details

Part number:

AOT12N40

Manufacturer:

INCHANGE

File Size:

257.01kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

AOT12N40 Application

• Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 400 V VGS Gate-Source Voltage-Continu
