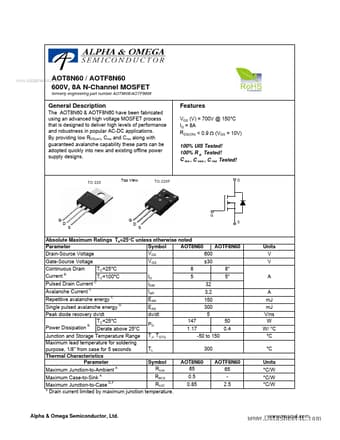

AOT9606 8A N-Channel MOSFET

The AOT8N60 & AOTF8N60 have been fabricated using an advanced high voltage MOSFET process that is designed to deliver high levels of performance and robustness in popular AC-DC applications. By providing low RDS(on), Ciss and Crss along with guaranteed avalanche capability these parts can be adopted.

AOT9606 Features

* VDS (V) = 700V @ 150°C ID = 8A RDS(ON) < 0.9 Ω (VGS = 10V) 100% UIS Tested! 100% R g Tested! C iss , C oss , C rss Tested! TO-220 Top View TO-220F D G G D G S D S S Absolute Maximum Ratings TA=25°C unless otherwise noted AOT8N60 Parameter Symbol AOTF8N60 V Drain-Source Voltage 600 DS VGS Gate-
