AA107-310 - GaAs IC 5 Bit Digital Attenuator With Serial-to-Parallel Driver DC-2 GHz
Datasheet Summary
Description
The AA107-310 is a GaAs FET IC 5 bit digital attenuator with a serial-to-parallel driver packaged in a 32 leadless exposed pad plastic package.
Features
I Positive Voltage Operation (+5 V) I MLF 5 x 5 mm Leadless Package I Integrated Silicon Serial-to-Parallel Driver I Attenuation 0.5 dB Steps to 15.5 dB
MLF 5 x 5 (-310)
0.197 (5.00 mm) BSC 0.039 (1.00 mm) MAX. PIN 1 0.187 0.001.
AA100-59- GaAs IC 3 Bit Digital Attenuator 4 dB LSB Positive Control 0.75-2 GHz
AA101-80- GaAs IC 5 Bit Digital Attenuator 1 dB LSB Positive Control 0.5-2.5 GHz
AA102-80- GaAs IC 5 Bit Digital Attenuator 0.5 dB LSB Positive Control 0.5-2.5 GHz
AA103-72- GaAs IC 1 Bit Digital Attenuator 10 dB LSB DC-2.5 GHz
AA104-73- GaAs IC 1 Bit Digital Attenuator 32 dB 2.5 GHz
AA105-86- GaAs IC 4 Bit Digital Attenuator 1 dB LSB Positive Control 0.5-3.0 GHz
AA106-86- GaAs IC 5 Bit Digital Attenuator 0.5 dB LSB Positive Control 0.5-2.0 GHz
AA109-310- GaAs IC 5 Bit Digital Attenuator With Serial-to-Parallel Driver 0.5-2.5 GHz
Full PDF Text Transcription
Click to expand full text

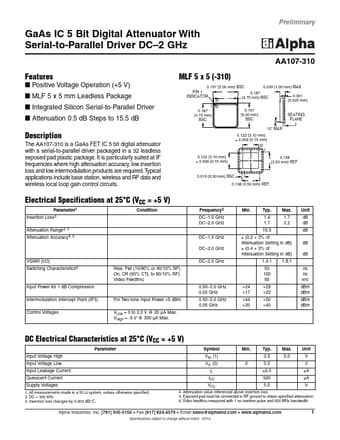

Preliminary
GaAs IC 5 Bit Digital Attenuator With Serial-to-Parallel Driver DC–2 GHz
AA107-310 Features
I Positive Voltage Operation (+5 V) I MLF 5 x 5 mm Leadless Package I Integrated Silicon Serial-to-Parallel Driver I Attenuation 0.5 dB Steps to 15.5 dB
MLF 5 x 5 (-310)
0.197 (5.00 mm) BSC 0.039 (1.00 mm) MAX. PIN 1 0.187 0.001 INDICATOR (4.75 mm) BSC (0.025 mm) 32
1
0.187 (4.75 mm) BSC
0.197 (5.00 mm) BSC 12˚ MAX.
SEATING PLANE
Description
The AA107-310 is a GaAs FET IC 5 bit digital attenuator with a serial-to-parallel driver packaged in a 32 leadless exposed pad plastic package. It is particularly suited at IF frequencies where high attenuation accuracy, low insertion loss and low intermodulation products are required.
AA107-310 Datasheet
