AV110-73

GaAs IC 30 dB Voltage Variable Attenuator Single Positive 3 V Control 1.7-2.5 GHz

AV110-73 Features

* I Single Positive 3 V Control Voltage I 33 dB Attenuation Range @ 1.9 GHz I Excellent Linearity Performance SOT-6 0.074 (1.90 mm REF.) PIN 6 PIN 1 INDICATOR PIN 1 0.020 (0.51 mm) 0.014 (0.350 mm) 0.057 (1.45 mm) 0.035 (0.90 mm) 0.126 (3.20 mm) 0.087 (2.20 mm) 0.071 (1.80 mm) 0.052 (1.30 mm) Descri

AV110-73 General Description

The AV110-73 GaAs IC FET voltage variable attenuator provides 33 dB attenuation range at 1900 MHz controlled by a single positive voltage. The VVA has a linear transfer curve of 12 dB/V slope, with input and output VSWR better than 2:1 over all states. It operates with supply voltage of +3 V and con.

AV110-73 Datasheet (36.40 KB)

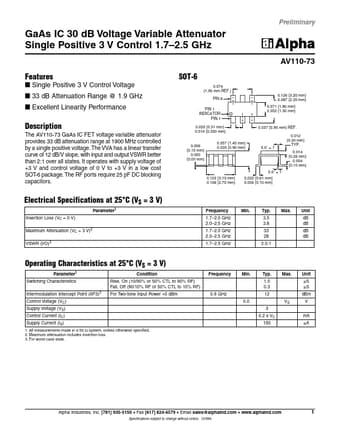

Preview of AV110-73 PDF

Datasheet Details

Part number:

AV110-73

Manufacturer:

Alpha Industries

File Size:

36.40 KB

Description:

Gaas ic 30 db voltage variable attenuator single positive 3 v control 1.7-2.5 ghz.
