AV113-12

HIP3 Variable Attenuator 2.10-2.30 GHz

AV113-12 Features

* I Low Loss 1.4 dB Typical I Attenuation 18 dB Typical I Good VSWR

AV113-12 General Description

The AV113-12 is a current controlled variable attenuator from Alpha’s series of HIP3™ components. It is designed to meet the wide dynamic range required in IMT-2000 applications. A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package reducing size a.

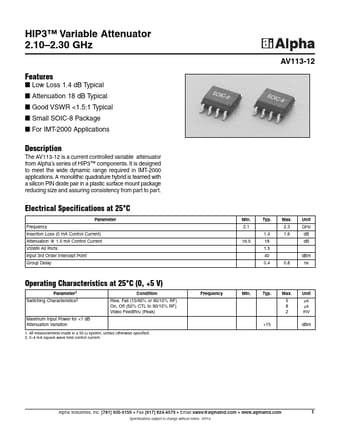

AV113-12 Datasheet (801.96 KB)

Preview of AV113-12 PDF

Datasheet Details

Part number:

AV113-12

Manufacturer:

Alpha Industries

File Size:

801.96 KB

Description:

Hip3 variable attenuator 2.10-2.30 ghz.
