QS6400, Advanced ADPCM SOUND DSP

Advanced ADPCM SOUND DSP for Mobile QS6400 www.DataSheet4U.com 1.General .

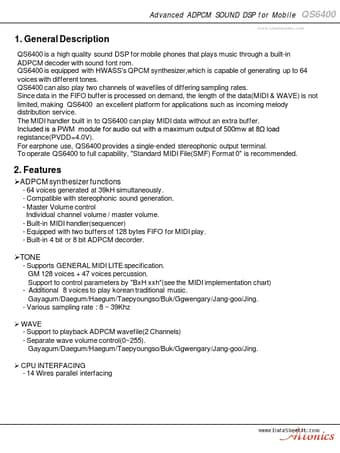

datasheet Preview Page 1 from Datasheet4u.com

QS6400_Altonics.pdf

QS6400 Datasheet Preview — Preview of QS6400 PDF

Datasheet Details

Part number:

QS6400

Manufacturer:

Altonics

File Size:

495.53 KB

Description:

Advanced ADPCM SOUND DSP

Features

* ADPCM synthesizer functions - 64 voices generated at 39kH simultaneously. - Compatible with stereophonic sound generation. - Master Volume control Individual channel volume / master volume. - Built-in MIDI handler(sequencer) - Equipped with two buffers of 128 bytes FIFO for MIDI play. - Built-i

Applications

* such as incoming melody distribution service. The MIDI handler built in to QS6400 can play MIDI data without an extra buffer. Included is a PWM module for audio out with a maximum output of 500mw at 8Ω load registance(PVDD=4.0V). For earphone use, QS6400 provides a single-ended stereophonic output t
