QS6J11

Dual Pch -12V -2.0A Power MOSFET

QS6J11 Features

* 1) Low on - resistance. 2) Built-in G-S Protection Diode. 3) Small Surface Mount Package (TSMT6). 4) Pb-free lead plating ; RoHS compliant lOutline TSMT6 (6) (5) (4) (1) (2) (3) lInner circuit (1) Tr1 Gate (2) Tr2 Source (3) Tr2 Gate (4) Tr2 Drain (5) Tr1 Source (6) Tr1 Drain

* 1 ESD PRO

QS6J11 Datasheet (530.09 KB)

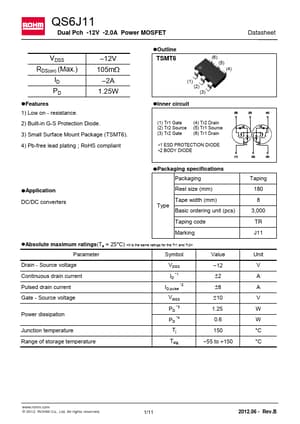

Preview of QS6J11 PDF

Datasheet Details

Part number:

QS6J11

Manufacturer:

ROHM ↗

File Size:

530.09 KB

Description:

Dual pch -12v -2.0a power mosfet.
