QS6M4, Small switching Transistors

QS6M4 Transistors Small switching QS6M4 z.

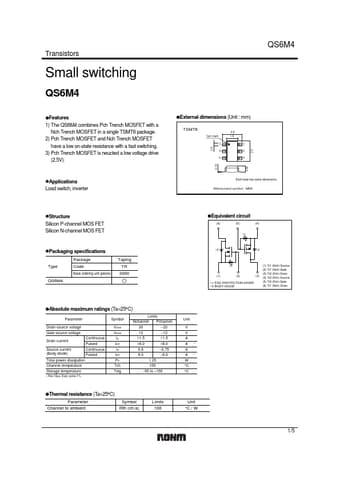

 datasheet Preview Page 1 from Datasheet4u.com

QS6M4_Rohm.pdf

Preview of QS6M4 PDF

Datasheet Details

Part number:

QS6M4

Manufacturer:

ROHM ↗

File Size:

75.55 KB

Description:

Small switching Transistors

Features

* 1) The QS6M4 combines Pch Trench MOSFET with a Nch Trench MOSFET in a single TSMT6 package. 2) Pch Trench MOSFET and Nch Trench MOSFET have a low on-state resistance with a fast switching. 3) Pch Trench MOSFET is neucted a low voltage drive (2.5V). zExternal dimensions (Unit : mm) TSMT6 1pin mark (1

Applications

* Load switch, inverter Each lead has same dimensions Abbreviated symbol : M04 zStructure Silicon P-channel MOS FET Silicon N-channel MOS FET zEquivalent circuit (6) (5) ∗1 (4) 0.85 2.9 (2) (5) zPackaging specifications Package Type QS6M4 Code Basic ordering unit (pieces) Taping TR 3000 ∗2
