AZ2161, AZ2160 - MINIATURE POWER RELAY

AZ2161 Description

AZ2160/AZ2161 MINIATURE POWER RELAY .

AZ2161 Features

* Versatility of both PC and “Trace-Saver” quick connect terminals on contacts
* 40 Amp switching capability for both N. O. and N. C. contacts
* 1 Form A, B and C contacts available
* DC coils to 120 VDC
* Life expectancy to 10 million operations
* Class

AZ2161 Applications

* Class F (155°C) version available
* Available with an epoxy seal for automatic wave soldering and cleaning
* UL, CUR file 44211 including versions meeting UL 508 and UL 873 spacing contact rating requirements CONTACTS Arrangement Ratings Material Resistance SPDT (1 Form C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AZ2161, AZ2160. Please refer to the document for exact specifications by model.

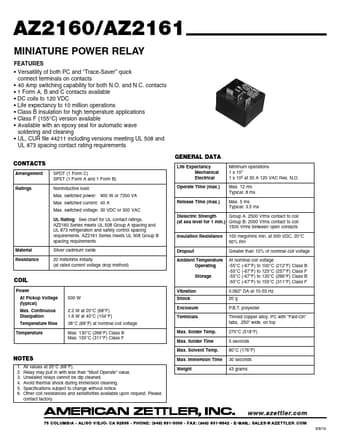

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ2161, AZ2160
Manufacturer
American Zettler
File Size
100.00 KB
Datasheet
AZ2160-AmericanZettler.pdf
Description
MINIATURE POWER RELAY
Note
This datasheet PDF includes multiple part numbers: AZ2161, AZ2160.
Please refer to the document for exact specifications by model.
