AZ2110 - 40A MINIATURE POWER RELAY

Datasheet Summary

Features

  • 40 Amp switching capability.
  • 1 Form A, B and C contacts available.
  • DC coils to 120 VDC.
  • Low cost.
  • Life expectancy to 10 million operations.
  • Class B insulation standard.
  • Class F (155°C) version available.
  • Versatility of both PC and “Trace Saver” quick-connect terminals on contacts offered on the AZ2120 version.
  • Proof Tracking Index (PTI/CTI) 175.
  • UL, CUR file E44211 including versions meeting UL 508 and UL.

📥 Download Datasheet

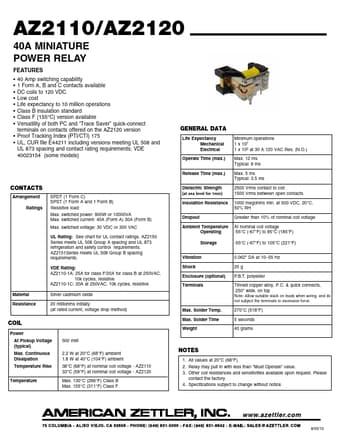

Datasheet preview – AZ2110

Datasheet Details

Part number AZ2110
Manufacturer American Zettler
File Size 321.79 KB
Description 40A MINIATURE POWER RELAY
Datasheet download datasheet AZ2110 Datasheet
Additional preview pages of the AZ2110 datasheet.

📁 Similar Datasheet

  • AZ2117 - LOW DROPOUT LINEAR REGULATOR (Diodes)
  • AZ2100 - MINIATURE POWER RELAY (ETC)
  • AZ2150 - MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ2185 - 3A LOW DROPOUT LINEAR REGULATOR (Diodes)
  • AZ2085 - 3A LOW DROPOUT LINEAR REGULATOR (Diodes)
  • AZ220K - Ceramic Composite Resistors (OHMITE)
  • AZ221K - Ceramic Composite Resistors (OHMITE)
  • AZ2225-01L - Transient Voltage Suppressing Device (Amazing Micro)
  • AZ2250 - 30 AMP MINIATURE POWER RELAY (Zettler)
  • AZ2280 - 30 AMP MINIATURE POWER RELAY (ETC)
Other Datasheets by American Zettler

Full PDF Text Transcription

Click to expand full text
AZ2110/AZ2120 40A MINIATURE POWER RELAY FEATURES • 40 Amp switching capability • 1 Form A, B and C contacts available • DC coils to 120 VDC • Low cost • Life expectancy to 10 million operations • Class B insulation standard • Class F (155°C) version available • Versatility of both PC and “Trace Saver” quick-connect terminals on contacts offered on the AZ2120 version • Proof Tracking Index (PTI/CTI) 175 • UL, CUR file E44211 including versions meeting UL 508 and UL 873 spacing and contact rating requirements; VDE 40023154 (some models) CONTACTS Arrangement Ratings SPDT (1 Form C) SPST (1 Form A and 1 Form B) Resistive load: Max. switched power: 900W or 10000VA Max. switched current: 40A (Form A) 30A (Form B) Max.
