AZ2085 - 3A LOW DROPOUT LINEAR REGULATOR

AZ2085 Description

OBSOLETE * PART DISCONTINUED PART OBSOLETE - USE AZ2185 AZ2085 3A LOW DROPOUT LINEAR REGULATOR .
The AZ2085 series is low dropout positive voltage regulators with a maximum dropout of 1.

AZ2085 Features

* on-chip thermal shutdown. It also includes a bandgap reference and a current limiting circuit. The AZ2085 is available in adjustable version. The adjustable version can set the output voltage with two external resistors. The AZ2085 series is available in standard packages of TO252-2 (3) and TO252-2

AZ2085 Applications

* High Efficiency Linear Regulators
* Battery Charger
* Digital Video/Camcorder
* Post Regulation for Switching Supplies
* Microprocessor Supply
* Mother Board Power Supplies
* DVD-video Player
* Telecom Equipment
* Set Top Boxes and Web Boxes Modules' Supply Fea

📥 Download Datasheet

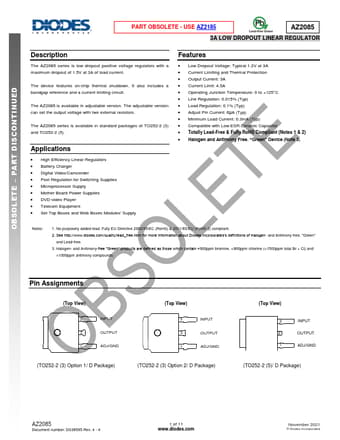

Preview of AZ2085 PDF
