AZ2150 - MINIATURE POWER RELAY

Features

  • 30 Amp switching capability for both N. O. and N. C. contacts.
  • 1 Form A, B and C contacts available.
  • DC coils to 120 VDC.
  • Life expectancy to 10 million operations.
  • Class B insulation standard.
  • Class F (155°C) version available.
  • Available with an epoxy seal for automatic wave soldering and immersion cleaning.
  • Proof Tracking Index (PTI/CTI) 175.
  • UL, CUR file E44211 including versions meeting UL 508 and UL 873 spacing a.

📥 Download Datasheet

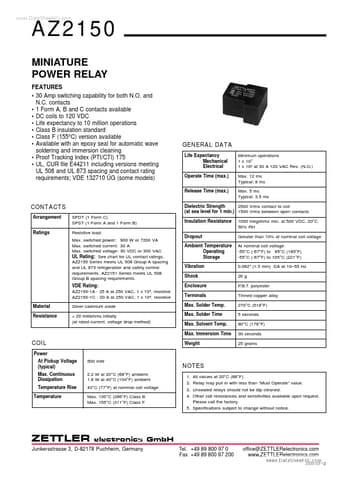

Datasheet preview – AZ2150

Datasheet Details

Part number AZ2150
Manufacturer ZETTLER Electronics
File Size 100.00 KB
Description MINIATURE POWER RELAY
Datasheet download datasheet AZ2150 Datasheet
Additional preview pages of the AZ2150 datasheet.

📁 Similar Datasheet

  • AZ2150W - MINIATURE POWER RELAY (American Zettler)
  • AZ2100 - MINIATURE POWER RELAY (ETC)
  • AZ2110 - 40A MINIATURE POWER RELAY (American Zettler)
  • AZ2117 - LOW DROPOUT LINEAR REGULATOR (Diodes)
  • AZ2120 - 40A MINIATURE POWER RELAY (American Zettler)
  • AZ2160 - MINIATURE POWER RELAY (American Zettler)
  • AZ2161 - MINIATURE POWER RELAY (American Zettler)
  • AZ2185 - 3A LOW DROPOUT LINEAR REGULATOR (Diodes)
  • AZ2085 - 3A LOW DROPOUT LINEAR REGULATOR (Diodes)
  • AZ220K - Ceramic Composite Resistors (OHMITE)
Other Datasheets by ZETTLER Electronics

    Full PDF Text Transcription

    Click to expand full text
    www.DataSheet4U.com AZ2150 MINIATURE POWER RELAY FEATURES • 30 Amp switching capability for both N.O. and N.C. contacts • 1 Form A, B and C contacts available • DC coils to 120 VDC • Life expectancy to 10 million operations • Class B insulation standard • Class F (155°C) version available • Available with an epoxy seal for automatic wave soldering and immersion cleaning • Proof Tracking Index (PTI/CTI) 175 • UL, CUR file E44211 including versions meeting UL 508 and UL 873 spacing and contact rating requirements; VDE 132710 ÜG (some models) GENERAL DATA Life Expectancy Mechanical Electrical Operate Time (max.) Release Time (max.) Minimum operations 1 x 107 1 x 105 at 30 A 120 VAC Res. (N.O.) Max. 12 ms Typical: 8 ms Max. 5 ms Typical: 3.
