AZ2117 Datasheet - Diodes

AZ2117-Diodes.pdf

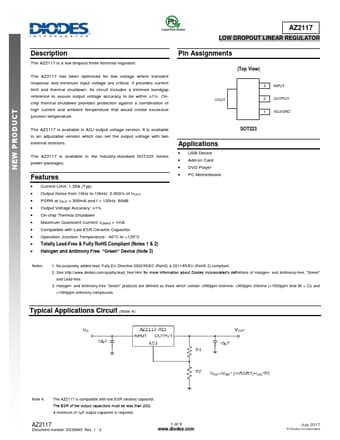

Preview of AZ2117 PDF
AZ2117 Datasheet Preview Page 2 AZ2117 Datasheet Preview Page 3

Datasheet Details

Part number:

AZ2117

Manufacturer:

DIODES ↗

File Size:

316.24 KB

Description:

Low dropout linear regulator.

AZ2117, LOW DROPOUT LINEAR REGULATOR

The AZ2117 is a low dropout three-terminal regulator.

The AZ2117 has been optimized for low voltage where transient response and minimum input voltage are critical.

It provides current limit and thermal shutdown.

Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to b

AZ2117 Features

* Current Limit: 1.35A (Typ)

* Output Noise from 10Hz to 10kHz: 0.003% of VOUT

* PSRR at IOUT = 300mA and f = 120Hz: 60dB

* Output Voltage Accuracy:
