AP1301 Datasheet - Anachip

Single Coil Fan Motor Full Wave Driver

AP1301 Features

* - Compatible to a Hall element - Operating voltage (VCC) : 4V to 20V - Lock shutdown and automatic restart - Speed indication output (FG) named as AP1301/4 - Rotation detection output (RD) named as AP1302/5 - Output current(AP1301/2) IO=500mA(max) - Output current(AP1304/5) IO=350mA(max) - Operating

AP1301 General Description

The AP1304/5 is single phase full wave drive design, which is suited for small fans (such as CPU cooling fans). The low switching noise and effective motor drive are another advantage. All functions, including lock shutdown, automatic restart, rotation detection (RD), and speed indication output (FG.

AP1301 Datasheet (197.83 KB)

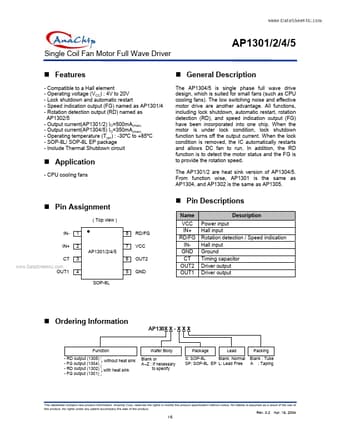

AP1301 Datasheet Preview — Preview of AP1301 PDF
