AP1304, AP1302 Datasheet - Anachip

AP1304 Single Coil Fan Motor Full Wave Driver

The AP1304/5 is single phase full wave drive design, which is suited for small fans (such as CPU cooling fans). The low switching noise and effective motor drive are another advantage. All functions, including lock shutdown, automatic restart, rotation detection (RD), and speed indication output (FG.

AP1304 Features

* - Compatible to a Hall element - Operating voltage (VCC) : 4V to 20V - Lock shutdown and automatic restart - Speed indication output (FG) named as AP1301/4 - Rotation detection output (RD) named as AP1302/5 - Output current(AP1301/2) IO=500mA(max) - Output current(AP1304/5) IO=350mA(max) - Operating

AP1302_Anachip.pdf

This datasheet PDF includes multiple part numbers: AP1304, AP1302. Please refer to the document for exact specifications by model.

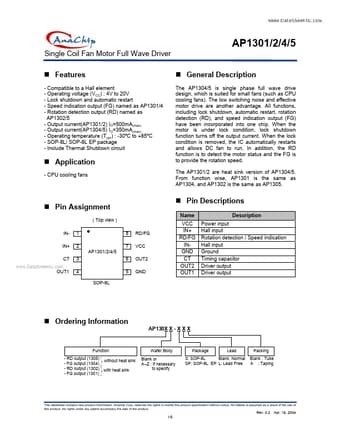

AP1304 Datasheet Preview Page 2 AP1304 Datasheet Preview Page 3

Datasheet Details

Part number:

AP1304, AP1302

Manufacturer:

Anachip

File Size:

197.83 KB

Description:

Single coil fan motor full wave driver.

Note:

This datasheet PDF includes multiple part numbers: AP1304, AP1302.
Please refer to the document for exact specifications by model.
