AP1302 - Single Coil Fan Motor Full Wave Driver

Product Overview

Anachip

Part number	AP1302
Manufacturer	Anachip
File Size	197.83 KB
Description	Single Coil Fan Motor Full Wave Driver
Datasheet	AP1302 Datasheet

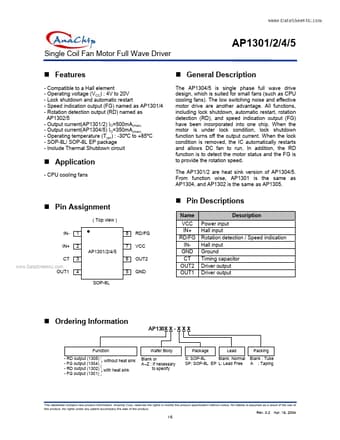

Additional preview pages of the AP1302 datasheet.

The AP1304/5 is single phase full wave drive design, which is suited for small fans (such as CPU cooling fans).

s - Compatible to a Hall element - Operating voltage (VCC) : 4V to 20V - Lock shutdown and automatic restart - Speed indication output (FG) named as AP1301/4 - Rotation detection output (RD) named as AP1302/5 - Output current(AP1301/2) IO=500mA(max) - Output current(AP1304/5) IO=350mA(max) - Operating temperature (Topr) : -30ºC to +85ºC - SOP-8L/ SOP-8L EP package - Include Thermal Shutdown circuit.
