AP1347

Two Coil Fan Motor Predriver

AP1347 Features

* - Compatible to a Hall element - Operating voltage (VCC) : 4V to 28V - Lock shutdown and automatic restart - Rotation detection (RD) output name as AP1347 - Speed indication output (FG) named as AP1346 - Output current IO=70mA (max) - Operating temperature (Topr) : -30ºC to +85ºC - SOP8 package - In

AP1347 General Description

The AP1346/7 fan motor predriver is suited for two-coil brush-less DC fan. All functions, including lock shutdown, automatic restart, speed indication (FG), have been integrated into one chip. When the motor is under lock condition, lock shutdown function turns off the output. When the lock conditio.

AP1347 Datasheet (193.78 KB)

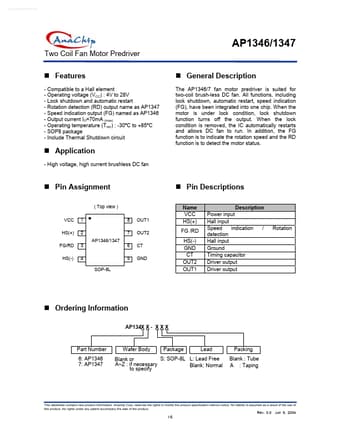

Preview of AP1347 PDF

Datasheet Details

Part number:

AP1347

Manufacturer:

Anachip

File Size:

193.78 KB

Description:

Two coil fan motor predriver.
