AP1305 Datasheet - Anachip

Single Coil Fan Motor Full Wave Driver

AP1305 Features

* - Compatible to a Hall element - Operating voltage (VCC) : 4V to 20V - Lock shutdown and automatic restart - Speed indication output (FG) named as AP1301/4 - Rotation detection output (RD) named as AP1302/5 - Output current(AP1301/2) IO=500mA(max) - Output current(AP1304/5) IO=350mA(max) - Operating

AP1305 General Description

The AP1304/5 is single phase full wave drive design, which is suited for small fans (such as CPU cooling fans). The low switching noise and effective motor drive are another advantage. All functions, including lock shutdown, automatic restart, rotation detection (RD), and speed indication output (FG.

AP1305 Datasheet (197.83 KB)

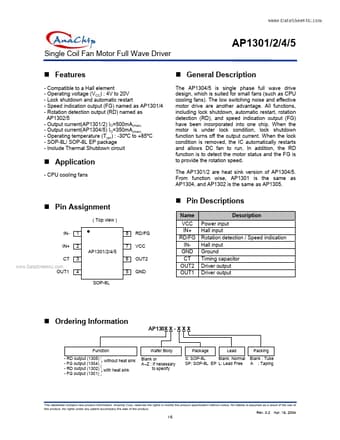

AP1305 Datasheet Preview — Preview of AP1305 PDF

Datasheet Details

Part number:

AP1305

Manufacturer:

Anachip

File Size:

197.83 KB

Description:

Single coil fan motor full wave driver.
