AD53500 Datasheet, Driver, Analog Devices

AD53500 Features

• Driver
    –2 V to +6 V Output Range 2.5 ⍀ Output Resistance 2.5 ns Tr/Tf for a 3 V Step 300 MHz Toggle Rate Can Drive 25 ⍀ Lines and Lower Peak Dynamic Current Capability of 400 m

PDF File Details

Part number:

AD53500

Manufacturer:

Analog Devices ↗

File Size:

101.24kb

Download:

📄 Datasheet

Description:

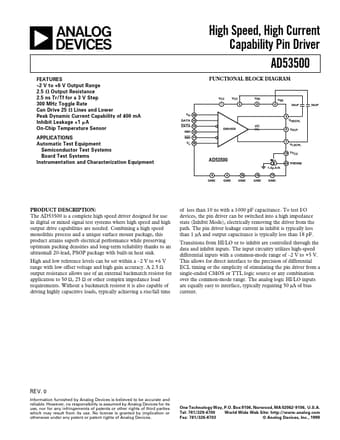

High speed/ high current capability pin driver. The AD53500 is a complete high speed driver designed for use in digital or mixed signal test systems where high speed and high outp

AD53500 Application

• Applications Automatic Test Equipment Semiconductor Test Systems Board Test Systems Instrumentation and Characterization Equipment VH DATA DATA INH
