AD53508 Datasheet, Circuit, Analog Devices

AD53508 Features

  • Circuit Dual Measurement Channels Precision Four-Quadrant-Per-Pin V/I Source Programmable Current Force Ranges ؎204.8 ␮A and ؎2.048 mA Five Current Measurement Ranges 204.8 nA to ؎2.048 mA Outp

PDF File Details

Part number:

AD53508

Manufacturer:

Analog Devices ↗

File Size:

218.00kb

Download:

📄 Datasheet

Description:

Ppmu circuit. The AD53508 is a custom dual-channel parametric measurement circuit for use in semiconductor automatic test equipment. It contains pr

Datasheet Preview: AD53508 📥 Download PDF (218.00kb)

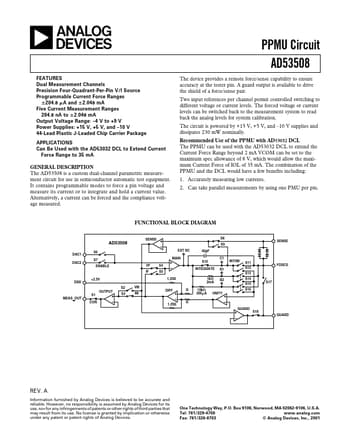

Page 2 of AD53508 Page 3 of AD53508

AD53508 Application

  • Applications Can Be Used with the AD53032 DCL to Extend Current Force Range to 35 mA GENERAL DESCRIPTION The AD53508 is a custom dual-channel parame
