AD53522

High Speed Dual Pin Electronic

AD53522 Features

* 1000 MHz Toggle Rate Driver/Comparator/Active Load and Dynamic Clamp Included Inhibit Mode Function 100-Lead LQFP Package with Built-In Heat Sink Driver 48 ⍀ Output Resistance 800 ps Tr/Tf for a 3 V Step Comparator 1.1 ns Propagation Delay at 3 V Load ؎40 mA Voltage Programmable Current Range 50 ns

AD53522 General Description

LCOMP The AD53522 is a complete, high speed, single-chip solution that performs the pin electronics functions of driver, comparator, and active load (DCL) for ATE applications. In addition, the driver contains a dynamic clamp function and the active load contains an integrated Schottky diode bridg.

AD53522 Datasheet (158.93 KB)

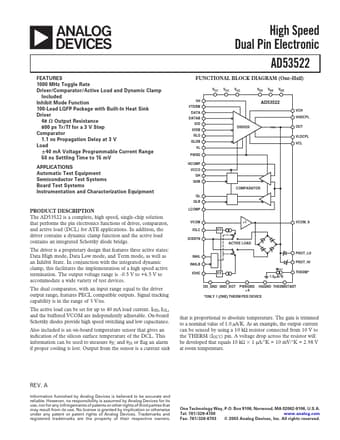

Preview of AD53522 PDF

Datasheet Details

Part number:

AD53522

Manufacturer:

Analog Devices ↗

File Size:

158.93 KB

Description:

High speed dual pin electronic.
