AD5501 Datasheet, Dac, Analog Devices

AD5501 Features

• Dac Single-channel high voltage DAC 12-bit resolution Pin-selectable 30 V or 60 V output range Integrated precision reference Low power serial interface with readback capability Integrated

PDF File Details

Part number:

AD5501

Manufacturer:

Analog Devices ↗

File Size:

673.26kb

Download:

📄 Datasheet

Description:

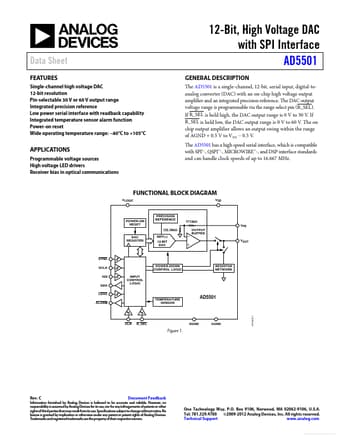

High voltage dac. The AD5501 is a single-channel, 12-bit, serial input, digital-toanalog converter (DAC) with an on-chip high voltage output amplifier

AD5501 Application

• Applications Programmable voltage sources High voltage LED drivers Receiver bias in optical communications FUNCTIONAL BLOCK DIAGRAM VLOGIC VDD POW
