AD5520 Datasheet, Unit, Analog Devices

AD5520 Features

  • Unit Force/Measure Functions Force Voltage/Current, Measure Current/Voltage Force Current/Voltage, Measure Current/Voltage Force/Measure Voltage Range ؎11 V 4 Programmable Force/Measure Curr

PDF File Details

Part number:

AD5520

Manufacturer:

Analog Devices ↗

File Size:

761.96kb

Download:

📄 Datasheet

Description:

Per pin parametric measurement unit/source measure unit. The AD5520 is a single channel per pin parametric measurement unit (PPMU) for use in semiconductor automatic test equipment. The par

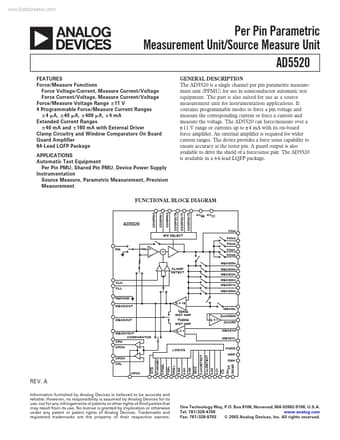

Datasheet Preview: AD5520 📥 Download PDF (761.96kb)
Page 2 of AD5520 Page 3 of AD5520

AD5520 Application

  • Applications Automatic Test Equipment Per Pin PMU, Shared Pin PMU, Device Power Supply Instrumentation Source Measure, Parametric Measurement, Preci
