AD5504 Datasheet, Dac, Analog Devices

AD5504 Features

• Dac Quad-channel high voltage DAC 12-bit resolution Pin selectable 30 V or 60 V output range Integrated precision reference Low power serial interface with readback capability Integrated te

PDF File Details

Part number:

AD5504

Manufacturer:

Analog Devices ↗

File Size:

653.47kb

Download:

📄 Datasheet

Description:

Quad-channel 12-bit voltage output dac. The AD5504 is a quad-channel, 12-bit, serial input, digital-toanalog converter with on-chip high voltage output amplifiers and an int

AD5504 Application

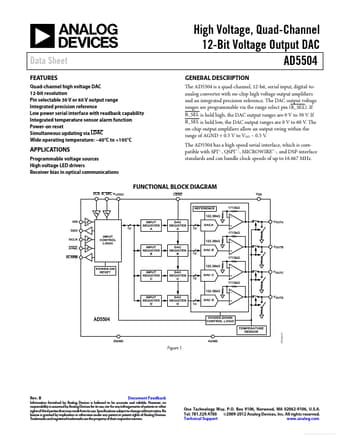

• Applications Programmable voltage sources High voltage LED drivers Receiver bias in optical communications FUNCTIONAL BLOCK DIAGRAM CLR R_SEL VLOGI
