AD5551 Datasheet, Dacs, Analog Devices

AD5551 Features

• Dacs Full 14-Bit Performance 5 V Single Supply Operation Low Power Fast Settling Time Unbuffered Voltage Output Capable of Driving 60 k ⍀ Loads Directly SPI™/QSPI™/MICROWIRE™-Compatible Inte

PDF File Details

Part number:

AD5551

Manufacturer:

Analog Devices ↗

File Size:

208.04kb

Download:

📄 Datasheet

Description:

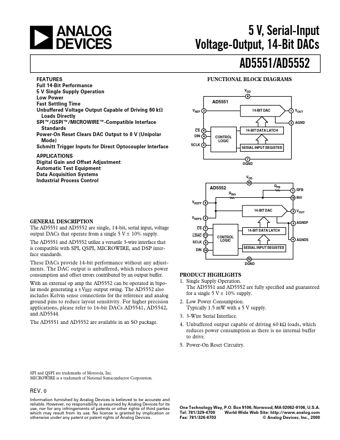

5 v/ serial-input voltage-output/ 14-bit dacs. VREFS CS LDAC SCLK DIN CONTROL LOGIC SERIAL INPUT REGISTER The AD5551 and AD5552 are single, 14-bit, serial input, voltage output D

AD5551 Application

• Applications Digital Gain and Offset Adjustment Automatic Test Equipment Data Acquisition Systems Industrial Process Control 5 V, Serial-Input Volt
