AD5755-1

4mA to 20mA and Voltage-Output DAC

AD5755-1 Features

* 16-bit resolution and monotonicity achieved by regulating the voltage on the output driver from 7.4 V to 29.5 V using a dc-to-dc boost converter optimized for minimum Dynamic power control for thermal management Current and voltage output pins connectable to a single terminal Current output ranges

AD5755-1 General Description

The AD5755-1 is a quad, voltage and current output digital-toanalog converter (DAC) that operates with a power supply range from

*26.4 V to +33 V. On-chip dynamic power control minimizes package power dissipation in current mode. This is HART Modem: AD5700, AD5700-1 External References: ADR.

AD5755-1 Datasheet (1.56 MB)

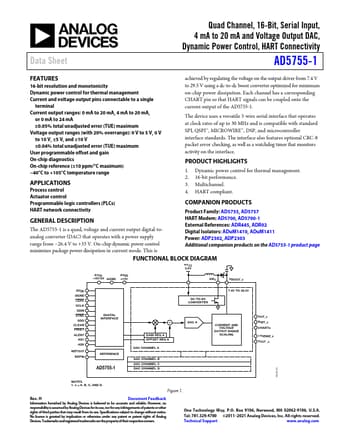

Preview of AD5755-1 PDF

Datasheet Details

Part number:

AD5755-1

Manufacturer:

Analog Devices ↗

File Size:

1.56 MB

Description:

4ma to 20ma and voltage-output dac.
