Part number: AD7397
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 226.08KB
Download: 📄 Datasheet

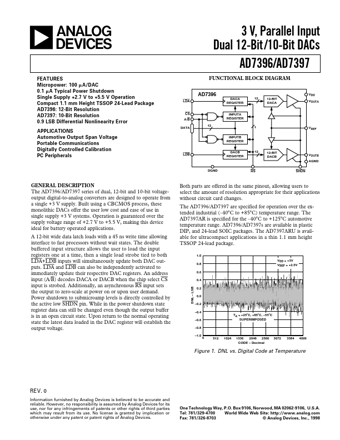

Description: 3 V/ Parallel Input Dual 12-Bit /10-Bit DACs
Micropower: 100 A/DAC 0.1 A Typical Power Shutdown Single Supply +2.7 V to +5.5 V Operation Compact 1.1 mm Height TSSOP 24-Lead Package AD7396: 12-Bit Resolution AD739.
Automotive Output Span Voltage Portable Communications Digitally Controlled Calibration PC Peripherals
LDA CS A/B DATA 1.
The AD7396/AD7397 series of dual, 12-bit and 10-bit voltageoutput digital-to-analog converters are designed to operate from a single +3 V supply. Built using a CBCMOS process, these monolithic DACs offer the user low cost and ease of use in single s.
