AD766

16-Bit DSP DACPORT

Analog Devices

AD766 Features

* Zero-Chip Interface to Digital Signal Processors Complete DACPORT® On-Chip Voltage Reference Voltage and Current Outputs Serial, Twos-Complement Input ؎3 V Output Sample Rates to 390 kSPS 94 dB Minimum Signal-to-Noise Ratio

* 81 dB Maximum Total Harmonic Distortion 15-Bit Monotonicity ؎5 V to

AD766 General Description

The AD766 16-bit DSP DACPORT provides a direct, threewire interface to the serial ports of popular DSP processors, including the ADSP-2101, TMS320CXX, and DSP56001. No additional “glue logic” is required. The AD766 is also complete, offering on-chip serial-to-parallel input format conversion, a 16-.

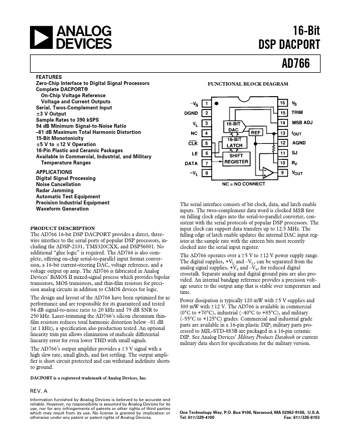

AD766 Datasheet (310.17 KB)

AD766 Datasheet Preview — Preview of AD766 PDF

Datasheet Details

Part number:

AD766

Manufacturer:

Analog Devices ↗

File Size:

310.17 KB

Description:

16-bit dsp dacport.
