AD7664 16-Bit 570 kSPS CMOS ADC

Analog Devices

Description

a .
16-Bit, 570 kSPS CMOS ADC AD7664. FUNCTIONAL BLOCK DIAGRAM AVDD AGND REF REFGND DVDD DGND OVDD SERIAL PORT SWITCHED CAP DAC 16 DATA[15:0] BUSY PA.

📥 Download Datasheet

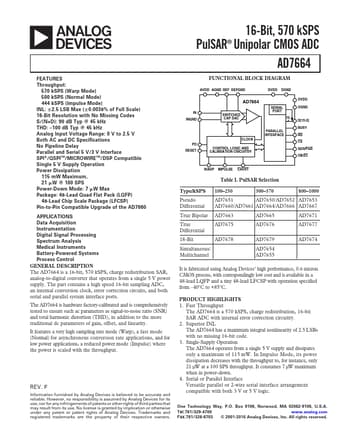

AD7664 Datasheet Preview — Preview of AD7664 PDF

Datasheet Specifications

Part number: AD7664
Manufacturer: Analog Devices ↗
File Size: 510.67 KB
Datasheet: AD7664_AnalogDevices.pdf
Description: 16-Bit 570 kSPS CMOS ADC

Features

* Throughput: 570 kSPS (Warp Mode) 500 kSPS (Normal Mode) INL: ؎2.5 LSB Max ( ؎0.0038% of Full-Scale) 16 Bits Resolution with No Missing Codes S/(N+D): 90 dB Typ @ 10 kHz THD:
* 100 dB Typ @ 10 kHz Analog Input Voltage Range: 0 V to 2.5 V Both AC and DC Specifications No Pipeline Delay Parallel
