AD7663

250 kSPS CMOS ADC

AD7663 Features

* Throughput: 250 kSPS INL: ؎3 LSB Max (؎0.0046% of Full Scale) 16-Bit Resolution with No Missing Codes S/(N+D): 90 dB Typ @ 100 kHz THD:

* 100 dB Typ @ 100 kHz Analog Input Voltage Ranges Bipolar: ؎10 V, ؎5 V, ؎2.5 V Unipolar: 0 V to 10 V, 0 V to 5 V, 0 V to 2.5 V Both AC and DC Specifications

AD7663 General Description

The AD7663 is a 16-bit, 250 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. It contains a high speed 16-.

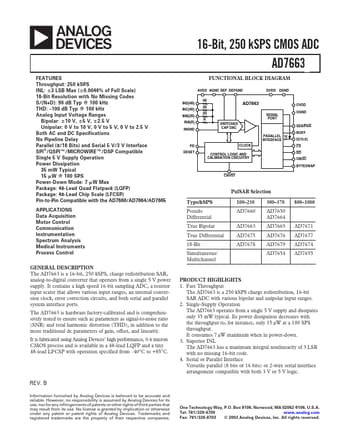

AD7663 Datasheet (527.51 KB)

Preview of AD7663 PDF

Datasheet Details

Part number:

AD7663

Manufacturer:

Analog Devices ↗

File Size:

527.51 KB

Description:

250 ksps cmos adc.
