AD7660

16-Bit 100 kSPS CMOS ADC

AD7660 Features

* Throughput: 100 kSPS INL: ؎3 LSB Max (؎ 0.0046% of Full-Scale) 16 Bits Resolution with No Missing Codes S/(N+D): 87 dB Min, 90 dB Typ @ 10 kHz THD:

* 96 dB Max @ 10 kHz Analog Input Voltage Range: 0 V to 2.5 V Both AC and DC Specifications No Pipeline Delay Parallel and Serial 5 V/3 V Interfa

AD7660 General Description

PRODUCT HIGHLIGHTS The AD7660 is a 16-bit, 100 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains an internal conversion clock, error correction circuits, and both serial and parallel system interface ports. The AD7660 is ha.

AD7660 Datasheet (441.35 KB)

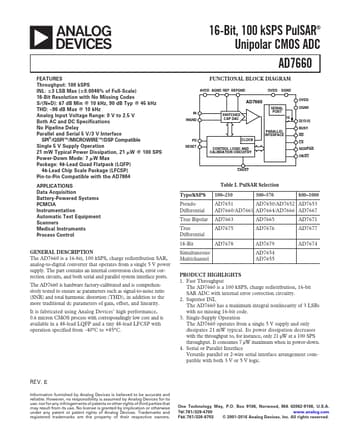

Preview of AD7660 PDF

Datasheet Details

Part number:

AD7660

Manufacturer:

Analog Devices ↗

File Size:

441.35 KB

Description:

16-bit 100 ksps cmos adc.
