AD7667

16-Bit 1MSPS SAR Unipolar ADC

AD7667 Features

* Throughput: 1 MSPS (Warp Mode) 800 kSPS (Normal Mode) INL: ±2.5 LSB Max (±0.0038% of Full Scale) 16 Bits Resolution with No Missing Codes Analog Input Voltage Range: 0 V to 2.5 V No Pipeline Delay Parallel and Serial 5 V/3 V Interface SPITM/QSPITM/MICROWIRETM/DSP Compatible Single 5 V Supply Operati

AD7667 General Description

The AD7667 is a 16-bit, 1 MSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high-speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system i.

AD7667 Datasheet (512.00 KB)

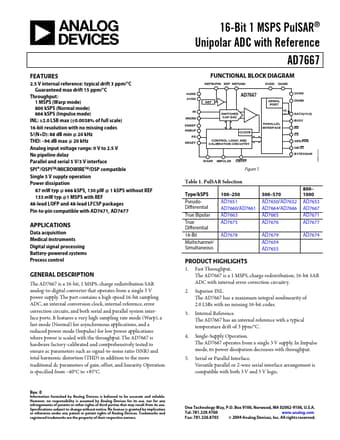

Preview of AD7667 PDF
