AD8383

6-Channel Output Decimating LCD DecDriver

AD8383 Features

* FUNCTIONAL BLOCK DIAGRAM High voltage drive to within 1.3 V of supply rails Output short-circuit protection High update rates 10 DB(0:9) 10 10 2-STAGE 10 DAC LATCH VID0 Fast, 100 Ms/s, 10-bit input data update rate Low static power dissipation: 0.7 W AD8383 10 2-STAGE 10 DAC LATCH VID1 In

AD8383 General Description

O The AD8383 provides a fast, 10-bit latched decimating digital input that drives six high voltage outputs. 10-bit input words are sequentially loaded into six separate, high speed, bipolar DACs. S Flexible digital input format allows several AD8383s to be used in parallel for higher resolution disp.

AD8383 Datasheet (928.12 KB)

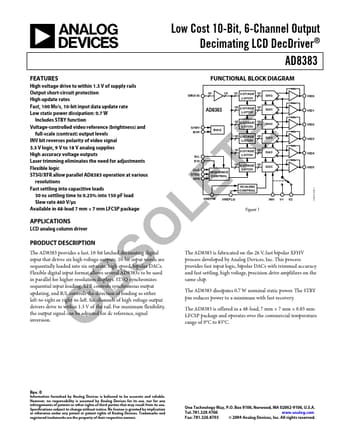

Preview of AD8383 PDF

Datasheet Details

Part number:

AD8383

Manufacturer:

Analog Devices ↗

File Size:

928.12 KB

Description:

6-channel output decimating lcd decdriver.
