AD8382

Decimating LCD DecDriver

AD8382 Features

* High accuracy, high resolution voltage outputs 12-bit input resolution Laser trimmed outputs Fast settling, high voltage drive 33 ns settling time to 0.25% into 200 pF load Slew rate 390 V/µs Outputs to within 1.3 V of supply High update rates Fast, 120 Ms/s data update rate Voltage controlled video

AD8382 General Description

The AD8382 DecDriver® provides a fast, 12-bit latched decimating digital input that drives six high voltage outputs.12-bit input words are sequentially loaded into six separate, high speed, bipolar DACs. A .

AD8382 Datasheet (1.02 MB)

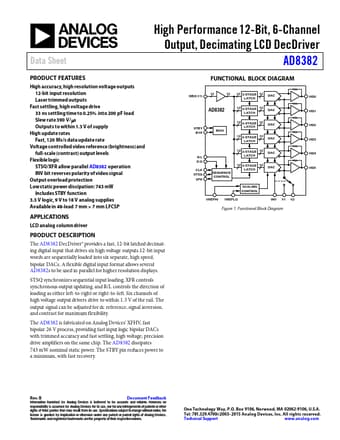

Preview of AD8382 PDF

Datasheet Details

Part number:

AD8382

Manufacturer:

Analog Devices ↗

File Size:

1.02 MB

Description:

Decimating lcd decdriver.
