AD8385

12-Channel Decimating LCD DECDRIVER

AD8385 Features

* High voltage drive to within 1.3 V of supply rails Output short-circuit protection High update rates Fast, 100 Ms/s 10-bit input data update rate Static power dissipation: 1.84 W Voltage controlled video reference (brightness), offset, and full-scale (contrast) output levels INV bit reverses polarit

AD8385 General Description

The AD8385 provides a fast, 10-bit, latched decimating digital input that drives 12 high voltage outputs. 10-bit input words are loaded into 12 separate high speed, bipolar DACs sequentially. Flexible digital input format allows several AD8385s to be used in parallel in high resolution displays. The.

AD8385 Datasheet (762.26 KB)

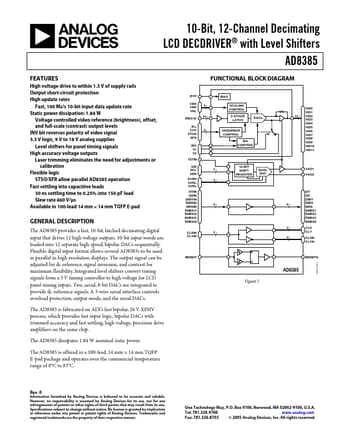

Preview of AD8385 PDF

Datasheet Details

Part number:

AD8385

Manufacturer:

Analog Devices ↗

File Size:

762.26 KB

Description:

12-channel decimating lcd decdriver.
