AD8381 Datasheet, Driver, Analog Devices

AD8381 Features

  • Driver High Voltage Drive: Rated Settling Time to within 1.3 V of Supply Rails Output Overload Protection High Update Rates: Fast, 100 Ms/s 10-Bit Input Word Rate Low Power Dissipation: 570 mW

PDF File Details

Part number:

AD8381

Manufacturer:

Analog Devices ↗

File Size:

760.23kb

Download:

📄 Datasheet

Description:

6-channel output decdriver decimating lcd panel driver.

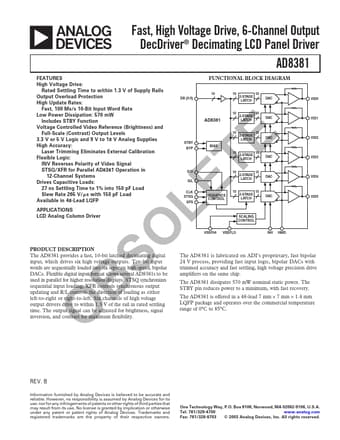

Datasheet Preview: AD8381 📥 Download PDF (760.23kb)
Page 2 of AD8381 Page 3 of AD8381

AD8381 Application

  • Applications LCD Analog Column Driver FUNCTIONAL BLOCK DIAGRAM DB (0:9) STBY BYP E/O R/L CLK STSQ XFR 10 10 10 2-STAGE LATCH DAC AD8381 10 1
