AD8591

Rail-to-Rail Input/Output Operational Amplifiers

Analog Devices

AD8591 Features

* Single-supply operation: 2.5 V to 6 V High output current: ±250 mA Extremely low shutdown supply current: 100 nA Low supply current: 750 μA/Amp Wide bandwidth: 3 MHz Slew rate: 5 V/μs No phase reversal Very low input bias current High impedance outputs when in shutdown mode Unity-gain stable APPLICA

AD8591 General Description

The AD8591, AD8592, and AD8594 are single, dual, and quad rail-to-rail, input and output single-supply amplifiers featuring 250 mA output drive current and a power saving shutdown mode. The AD8592 includes an independent shutdown function for each amplifier. When both amplifiers are in shutdown mode.

AD8591 Datasheet (299.04 KB)

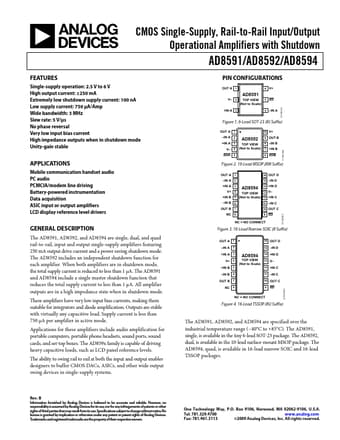

AD8591 Datasheet Preview — Preview of AD8591 PDF

Datasheet Details

Part number:

AD8591

Manufacturer:

Analog Devices ↗

File Size:

299.04 KB

Description:

Rail-to-rail input/output operational amplifiers.
