AD8594

Rail-to-Rail Input/Output Operational Amplifiers

AD8594 Features

* Single-supply operation: 2.5 V to 6 V High output current: ±250 mA Extremely low shutdown supply current: 100 nA Low supply current: 750 μA/Amp Wide bandwidth: 3 MHz Slew rate: 5 V/μs No phase reversal Very low input bias current High impedance outputs when in shutdown mode Unity-gain stable APPLICA

AD8594 General Description

The AD8591, AD8592, and AD8594 are single, dual, and quad rail-to-rail, input and output single-supply amplifiers featuring 250 mA output drive current and a power saving shutdown mode. The AD8592 includes an independent shutdown function for each amplifier. When both amplifiers are in shutdown mode.

AD8594 Datasheet (299.04 KB)

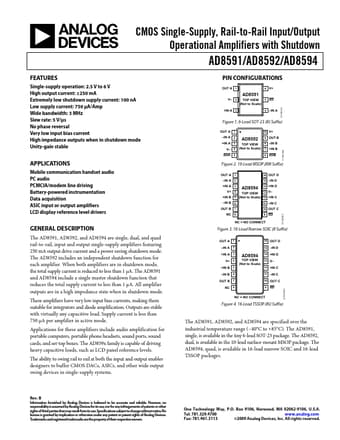

Preview of AD8594 PDF

Datasheet Details

Part number:

AD8594

Manufacturer:

Analog Devices ↗

File Size:

299.04 KB

Description:

Rail-to-rail input/output operational amplifiers.
