AD8592 - Rail-to-Rail Input/Output Operational Amplifiers

Name: AD8592
SKU: AD8592-143123

Analog Devices

📥 Download Datasheet

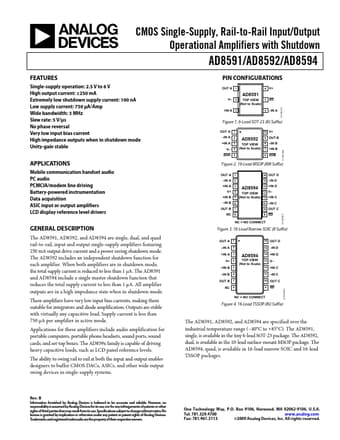

AD8592 Datasheet Preview — Preview of AD8592 PDF

Datasheet Details

Part number	AD8592
Manufacturer	Analog Devices
File Size	299.04 KB
Description	Rail-to-Rail Input/Output Operational Amplifiers
Datasheet	AD8592_AnalogDevices.pdf

AD8592 Product details

Description

The AD8591, AD8592, and AD8594 are single, dual, and quad rail-to-rail, input and output single-supply amplifiers featuring 250 mA output drive current and a power saving shutdown mode.

Features

Single-supply operation: 2.5 V to 6 V High output current: ±250 mA Extremely low shutdown supply current: 100 nA Low supply current: 750 μA/Amp Wide bandwidth: 3 MHz Slew rate: 5 V/μs No phase reversal Very low input bias current High impedance outputs when in shutdown mode Unity-gain stable.
