AD9641 1.8V Serial Output Analog-to-Digital Converter

Analog Devices

Description

Data Sheet 14-Bit, 80 MSPS/155 MSPS, 1.8 V Serial Output Analog-to-Digital Converter (ADC) AD9641 .

📥 Download Datasheet

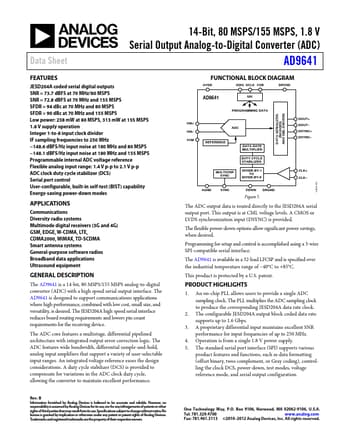

AD9641 Datasheet Preview — Preview of AD9641 PDF

Datasheet Specifications

Part number: AD9641
Manufacturer: Analog Devices ↗
File Size: 2.07 MB
Datasheet: AD9641-AnalogDevices.pdf
Description: 1.8V Serial Output Analog-to-Digital Converter

Features

* JESD204A coded serial digital outputs SNR = 73.7 dBFS at 70 MHz/80 MSPS SNR = 72.8 dBFS at 70 MHz and 155 MSPS SFDR = 94 dBc at 70 MHz and 80 MSPS SFDR = 90 dBc at 70 MHz and 155 MSPS Low power: 238 mW at 80 MSPS, 313 mW at 155 MSPS 1.8 V supply operation Integer 1-to-8 input clock divider IF sampli

Applications

* Communications Diversity radio systems Multimode digital receivers (3G and 4G) GSM, EDGE, W-CDMA, LTE, CDMA2000, WiMAX, TD-SCDMA Smart antenna systems General-purpose software radios Broadband data applicat
