AD9645 Datasheet - Analog Devices

AD9645, 1.8V Analog-to-Digital Converter

Data Sheet Dual, 14-Bit, 80 MSPS/125 MSPS, Serial LVDS 1.8 V Analog-to-Digital Converter AD9645 .
The AD9645 is a dual, 14-bit, 80 MSPS/125 MSPS analog-todigital converter (ADC) with an on-chip sample-and-hold circuit designed for low cost, low pow.

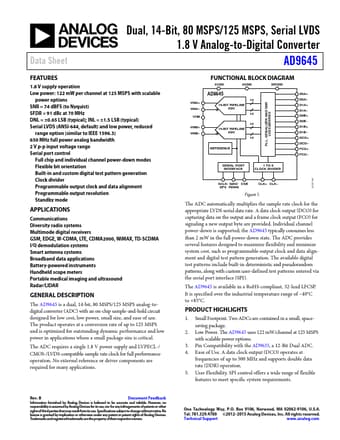

Datasheet Preview Page 1

AD9645_AnalogDevices.pdf

Preview of AD9645 PDF
AD9645 Datasheet Preview Page 2 AD9645 Datasheet Preview Page 3

Datasheet Details

Part number:

AD9645

Manufacturer:

Analog Devices ↗

File Size:

1.09 MB

Description:

1.8V Analog-to-Digital Converter

Features

* 1.8 V supply operation Low power: 122 mW per channel at 125 MSPS with scalable power options SNR = 74 dBFS (to Nyquist) SFDR = 91 dBc at 70 MHz DNL = ±0.65 LSB (typical); INL = ±1.5 LSB (typical) Serial LVDS (ANSI-644, default) and low power, reduced range option (similar to IEEE 1596.3) 650 MHz ful

Applications

* Communications Diversity radio systems Multimode digital receivers GSM, EDGE, W-CDMA, LTE, CDMA2000, WiMAX, TD-SCDMA I/Q demodulation systems Smart antenna systems Broadband data applications Battery-powered instruments Handheld scope meters Portable medical imaging and ultrasound Radar/LIDAR GENERA
