AD9642 - 1.8 V Analog-to-Digital Converter

Analog Devices

📥 Download Datasheet

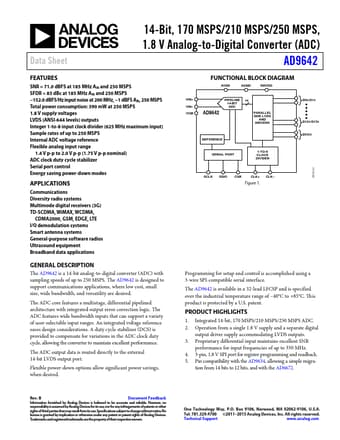

AD9642 Datasheet Preview — Preview of AD9642 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AD9642
Manufacturer: Analog Devices ↗
File Size: 1.17 MB
Datasheet: AD9642_AnalogDevices.pdf
Description: 1.8 V Analog-to-Digital Converter

AD9642 Product details

Description

The AD9642 is a 14-bit analog-to-digital converter (ADC) with sampling speeds of up to 250 MSPS..

Features

SNR = 71.0 dBFS at 185 MHz AIN and 250 MSPS SFDR = 83 dBc at 185 MHz AIN and 250 MSPS.
152.0 dBFS/Hz input noise at 200 MHz,.
1 dBFS AIN, 250 MSPS Total power consumption: 390 mW at 250 MSPS 1.8 V supply voltages LVDS (ANSI-644 levels) outputs Integer 1-to-8 input clock divider (625 MHz maximum input) Sample rates of up to 250 MSPS Internal ADC voltage reference Flexible analog input range 1.4 V p-p to 2.0 V p-p (1.75 V p-p nominal) ADC clock duty cycle stabilizer Serial port con.
