AD9802 Datasheet, Cameras, Analog Devices

AD9802 Features

  • Cameras 10-Bit, 18 MSPS A/D Converter 18 MSPS Full Speed Correlated Double Sampler (CDS) Low Noise, Wideband PGA Internal Voltage Reference No Missing Codes Guaranteed +3 V Single Supply Operat

PDF File Details

Part number:

AD9802

Manufacturer:

Analog Devices ↗

File Size:

366.97kb

Download:

📄 Datasheet

Description:

Ccd signal processor for electronic cameras. PRODUCT HIGHLIGHTS The AD9802 is a complete CCD signal processor developed for electronic cameras. It is suitable for both camcorde

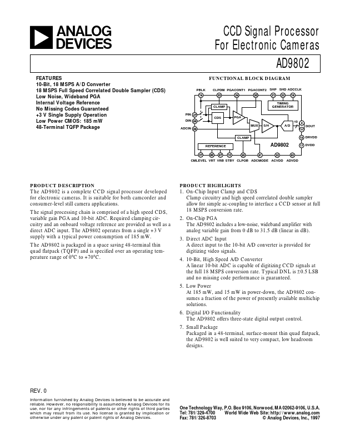

Datasheet Preview: AD9802 📥 Download PDF (366.97kb)
Page 2 of AD9802 Page 3 of AD9802

AD9802 Application

  • Applications The signal processing chain is comprised of a high speed CDS, variable gain PGA and 10-bit ADC. Required clamping circuitry and an onb
